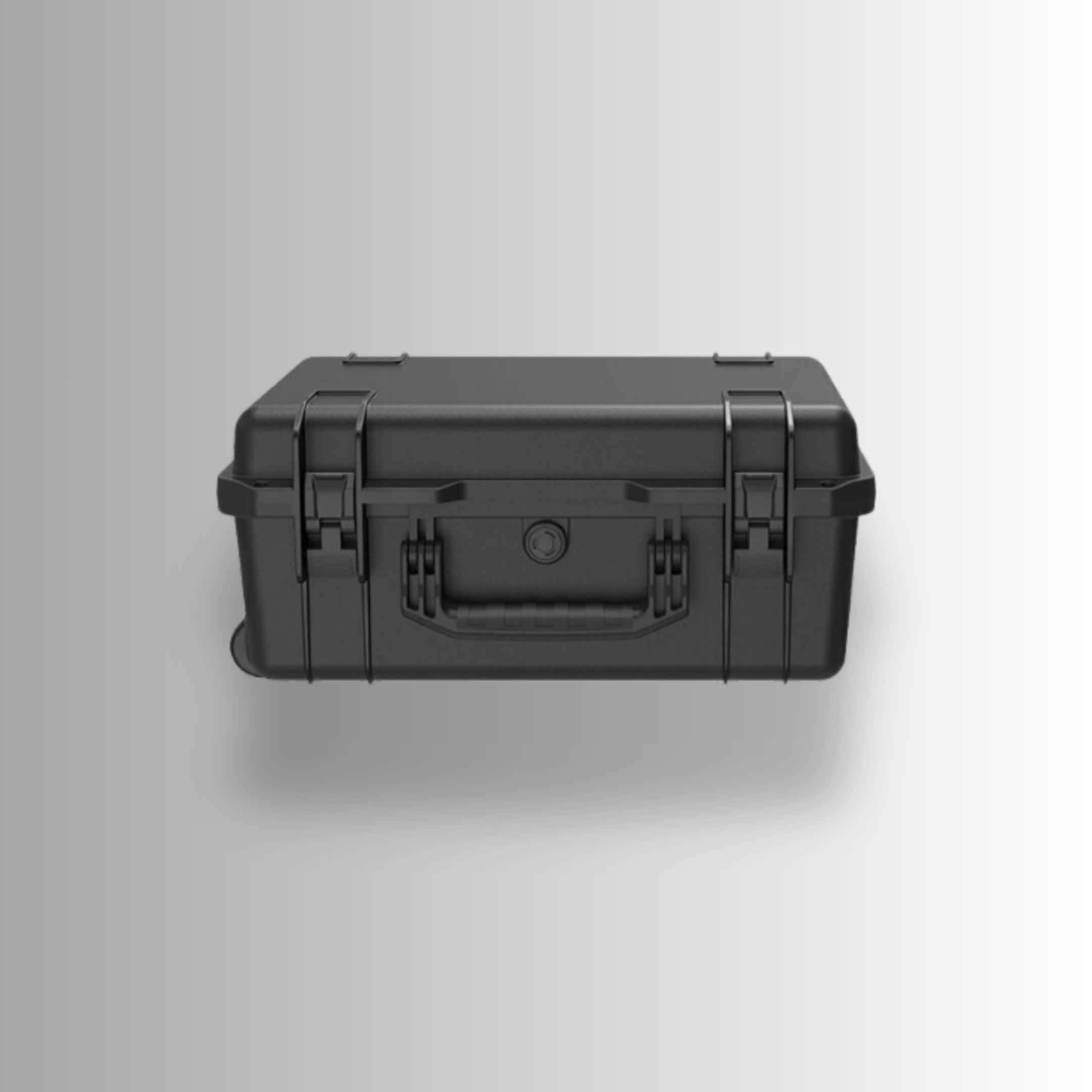

TB50 Battery Station UK (Inspire 2)

DESCRIPTION

The DJI Battery Station is an all-in-one solution designed to efficiently charge, store, and transport multiple batteries, ensuring that professional film crews have the power they need for every shooting task.

Key Features and Benefits:

• Comprehensive Charging:

  • Capable of charging up to eight TB50 Intelligent Batteries simultaneously.
  • Supports charging of other devices, including the Inspire 2 remote controller and WB37 Intelligent Battery, via multiple charging ports.
  • Equipped with USB ports to charge mobile devices, catering to all your energy-dependent equipment.

• Multiple Charging Modes:

  • Normal Mode: Charges all connected TB50 batteries simultaneously until fully charged.
  • Quick Mode: Prioritizes the four TB50 batteries with the highest charge, bringing them to 90% in just 35 minutes—ideal for urgent situations.
  • Silent Mode: Reduces charging speed to minimize noise, suitable for evening charges or noise-sensitive environments.

• Intelligent Discharging:

  • Features a Discharge mode to bring batteries to 25% for transportation and 50% for storage, enhancing battery maintenance and longevity.

• Safety and Reliability:

  • Built-in cooling fan dissipates heat during charging.
  • Overheating Detection monitors battery temperature in real-time, automatically canceling charging or discharging if overheating is detected.
  • Constructed with materials meeting USA UL94 V-0 flammability standards, ensuring safety in various environments.

• Firmware Management:

  • Displays the current firmware version of each attached TB50 battery on its LCD screen.
  • When updated via DJI Assistant 2, the Battery Station can update up to eight batteries to their latest firmware versions without needing a computer connection.

• Ample Storage and Portability:

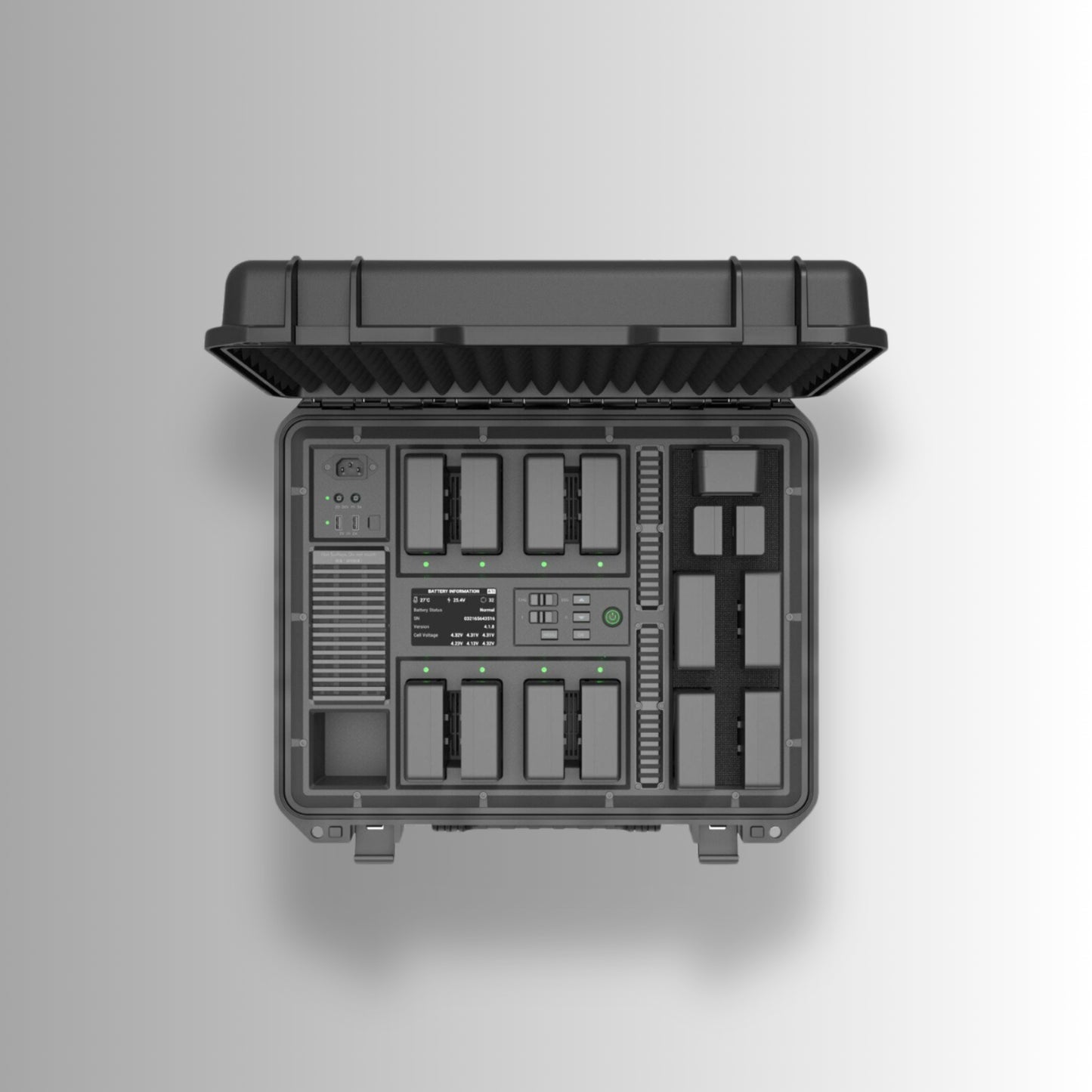

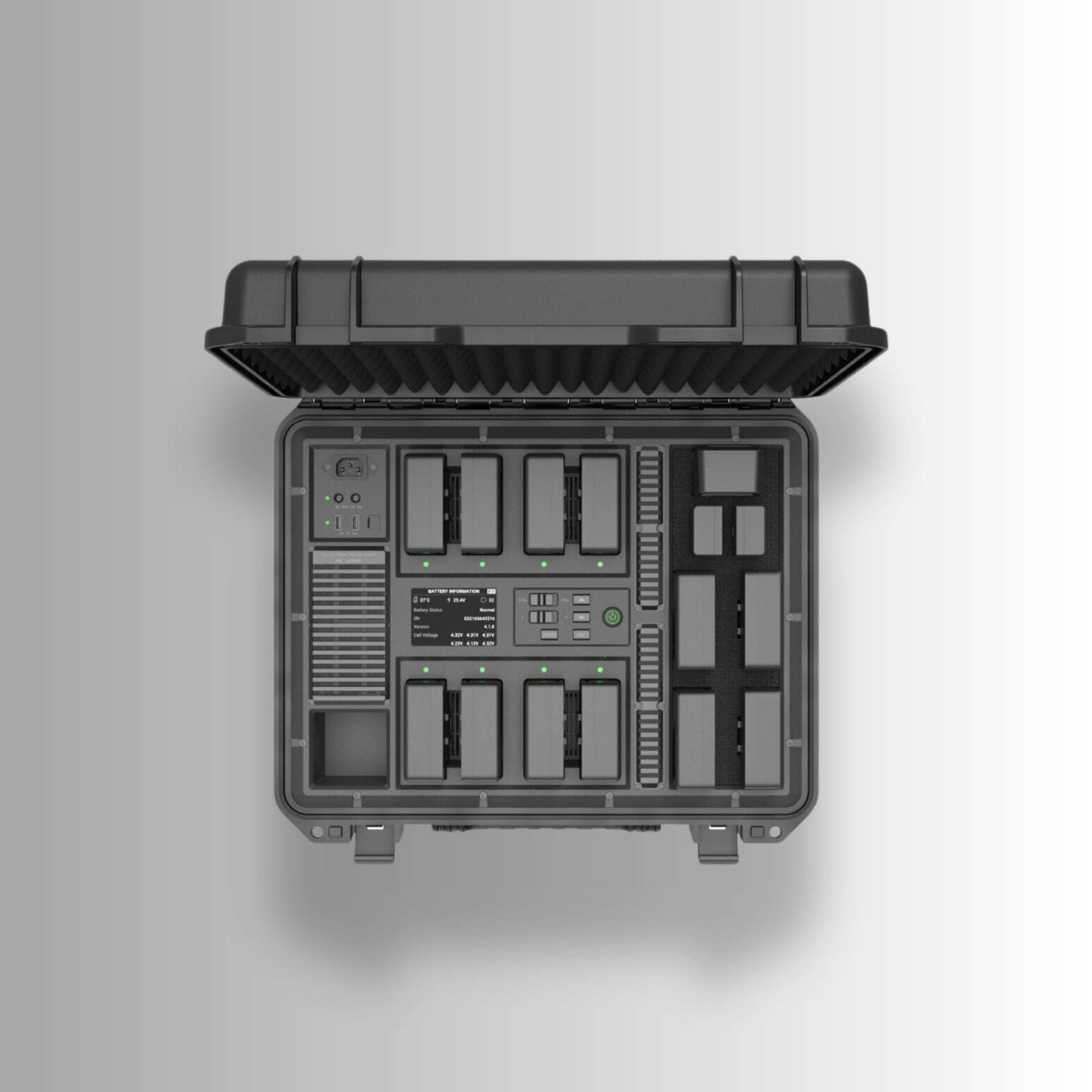

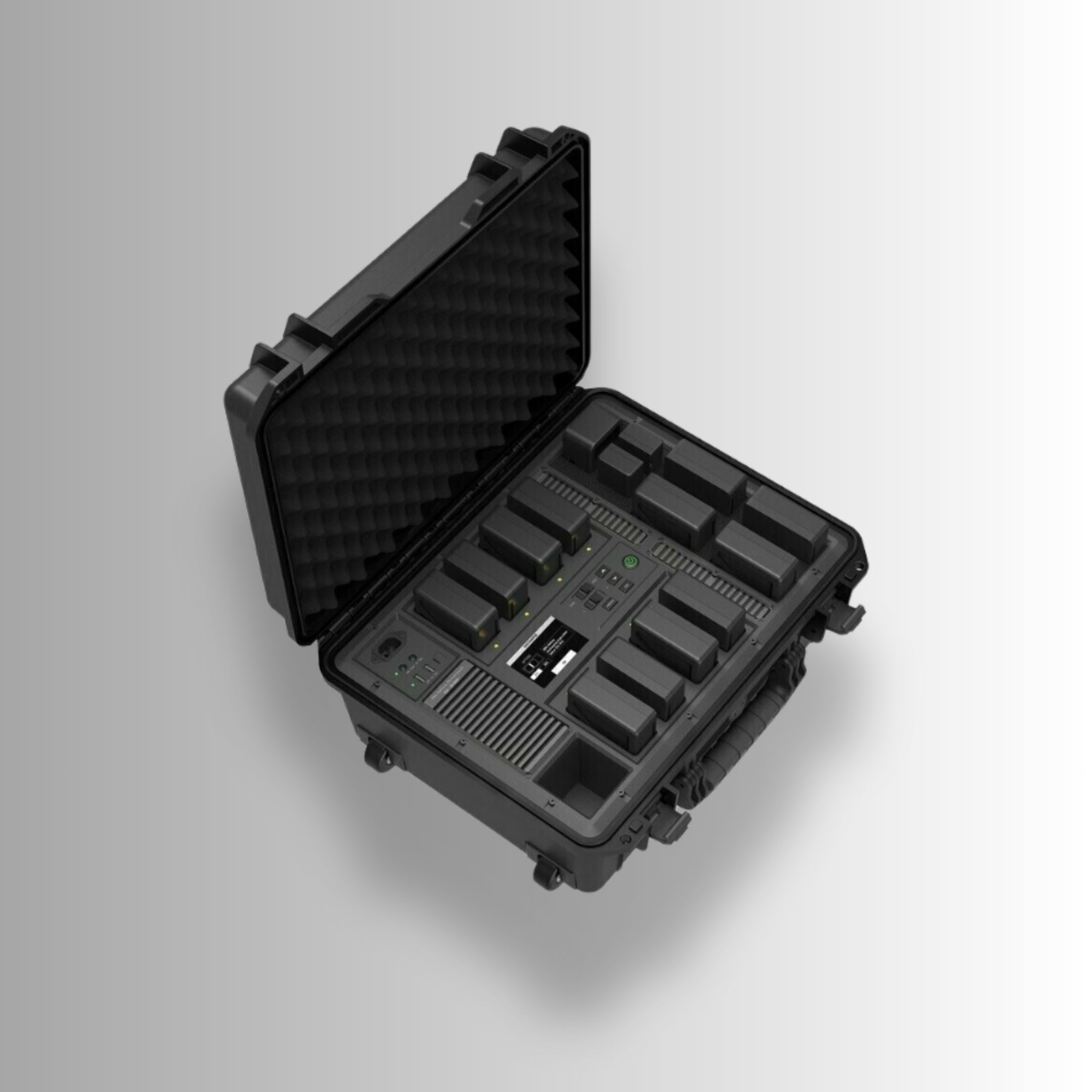

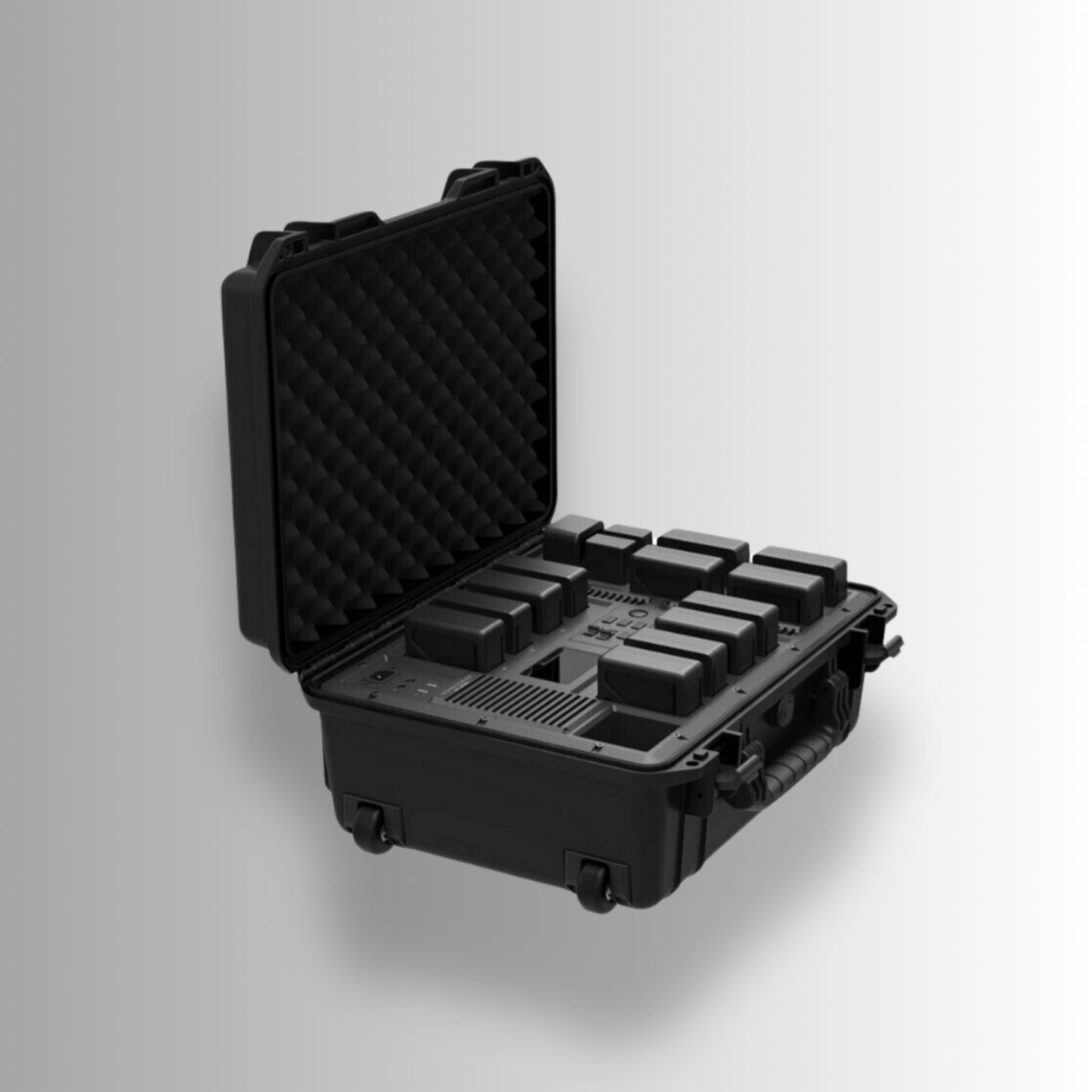

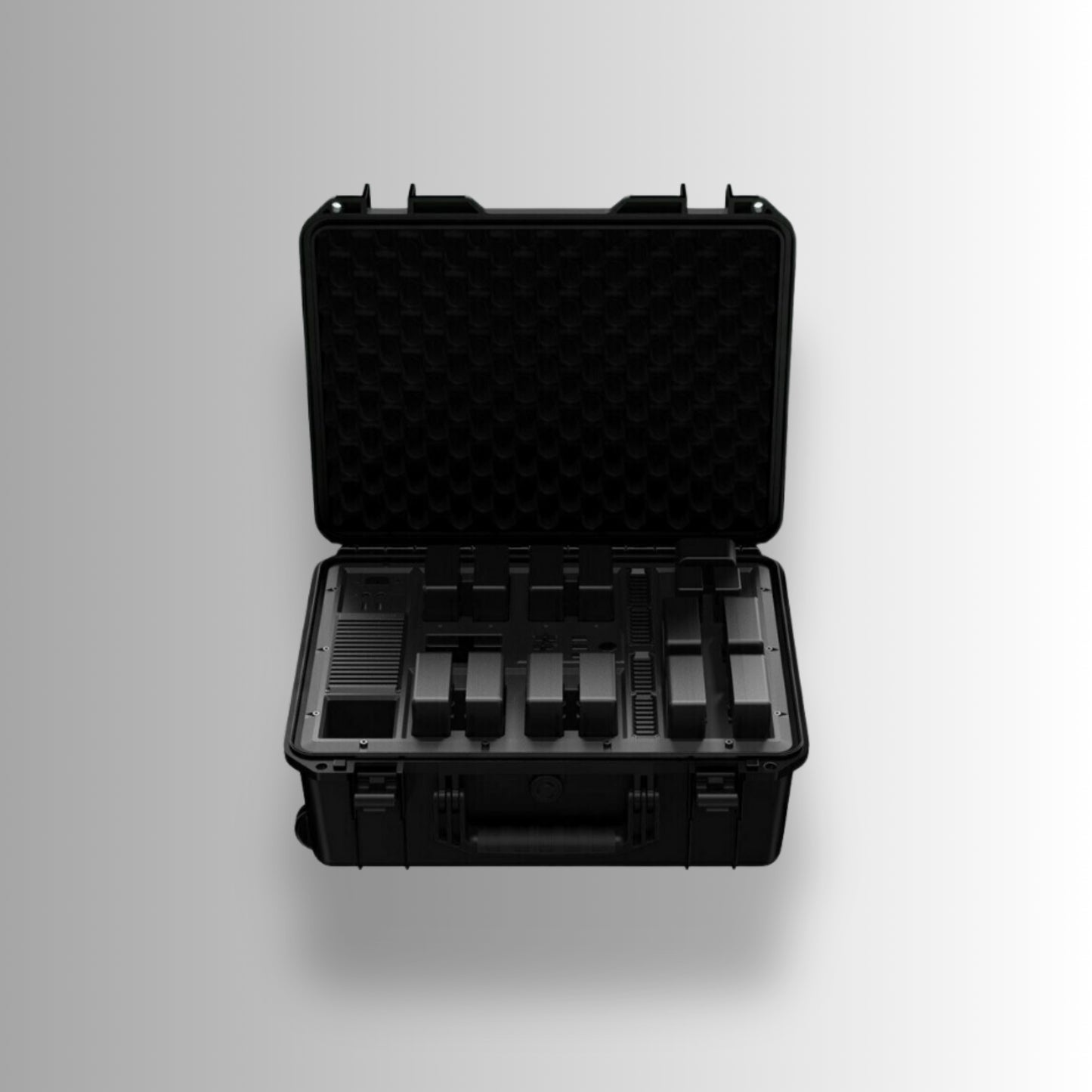

  • Designed to store up to 12 TB50 Intelligent Batteries, two WB37 Intelligent Batteries, and one WCH2 Charging Hub.

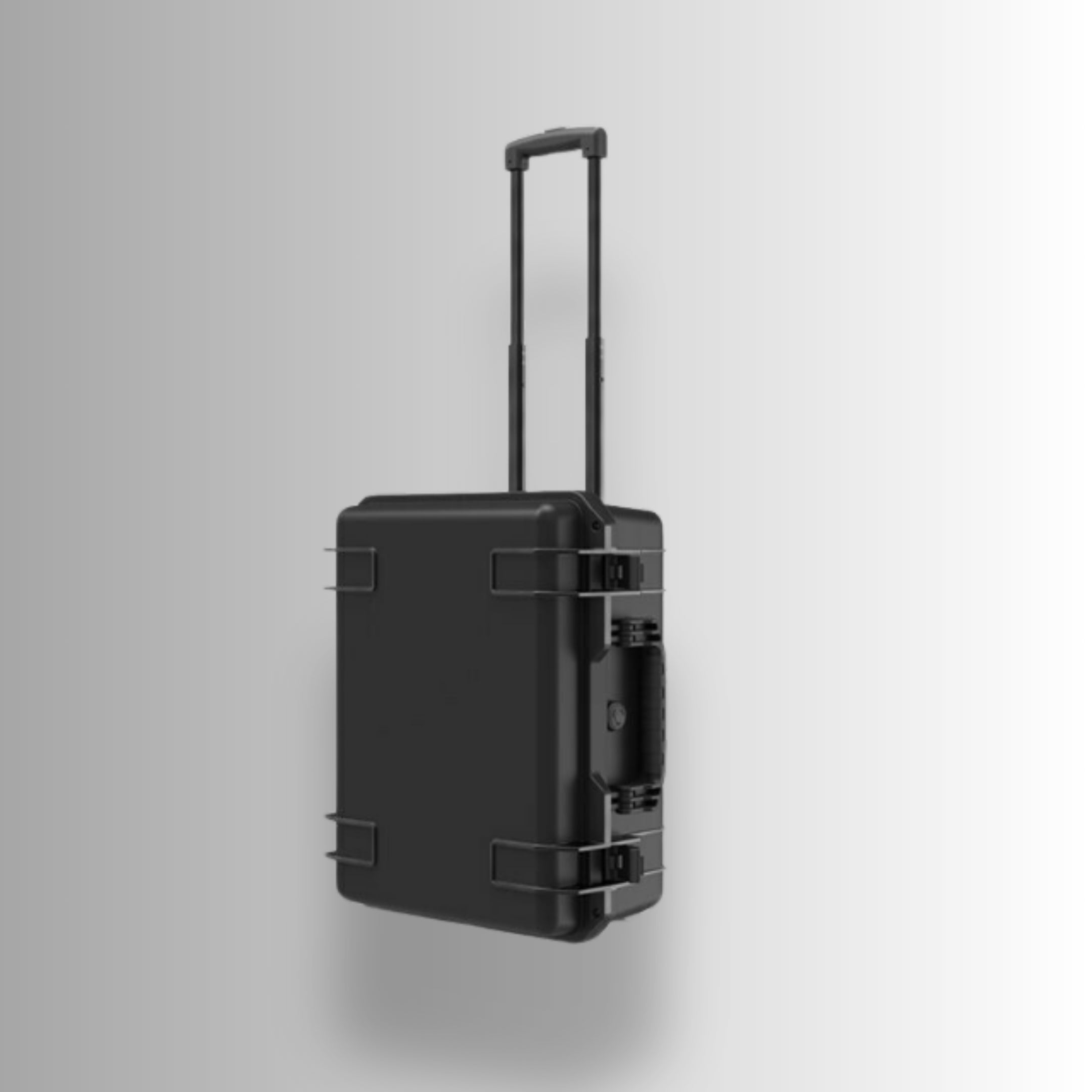

  • Equipped with wheels, making it convenient for transportation and supporting all-day shoots.

Compatibility:

• TB50 Intelligent Batteries: Commonly used with devices such as the Inspire 2, Ronin 2, and Matrice 200 series.
• WB37 Intelligent Batteries: Utilized in devices like the CrystalSky monitor and Cendence remote controller.
• Inspire 2 Remote Controller: Can be charged directly via the Battery Station.

The DJI Battery Station is an essential tool for professionals seeking efficient power management on set, ensuring that all devices are charged, maintained, and ready for action.

SPECIFICATIONS

General:

• Model: IN2BS
• Dimensions: 484 mm × 226.5 mm × 220 mm
• Net Weight: 7.7 kg
• Max Internal Load: 12 kg

Compatible Stored Items:

• TB50 Intelligent Battery: Up to 12
• WB37-4920mAh-7.6V Intelligent Battery: Up to 2
• WCH2 Charging Hub: 1
• AC Power Cable: 1

Input:

• Voltage: 100-240 V
• Frequency: 50-60 Hz

Output:

• Battery Port: 26.1 V max., 6.75 A max. × 8
• Remote Controller Port: 26.1 V max., 4 A max. × 2
• USB Port: 5 V, 2 A × 2

Operating Temperature:

• Range: 5° to 40° C (41° to 104° F)

Charging Time:

• TB50 Intelligent Battery:
  • Normal Mode: 90 minutes
  • Quick Mode: 35 minutes
  • Silent Mode: 4 hours 20 minutes
• Remote Controller:
  • Model GL6D10A: 2 hours 24 minutes
  • Model GL800A: 3 hours

Note: Charging times are tested in a lab environment at room temperature. These values should be used for reference only.

WHAT'S IN THE BOX

1 x DJI TB50 Battery Station

1 x AC Power Cable

2 x Remote Controller Charging Cable
